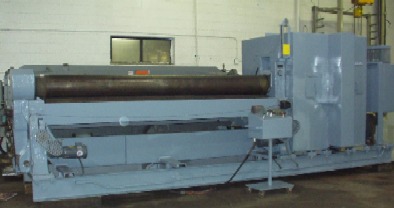

Bertsch Plate Bend Roll(#3234).
BERTSCH 3 ROLL MECHANICAL PLATE ROLL - REFURBISHED & UPGRADED (INV #3234) 120” X 1/2” MODEL 11 SN 7752 NEW 1948 AND HELD IN STORAGE REFURBISHED BY JL LUTZ METALWORKING MACHINERY CAPACITY: 1/2” BOILER DUTY X 120”, 17.5” MIN DIAMETER IN MULTI PASS 1/4” PIPE DUTY X 120”, 13” MIN DIAMETER IN SINGLE PASS LENGTH OF ROLL: 122” ROLL DIAMETER: 11-1/2” ROLLING SPEED 7-14 FPM MAIN DRIVE MOTOR: 15 HP 220/440/3 WITH BRAKE PINCH ROLL ADJ. MOTOR: 7-1/2 HP 220/440/3 BENDING ROLL ADJ. MOTORS: 1 HP 220/440/3 ON EACH SIDE WEIGHT: 30,000 LB APROX FLOOR SPACE 256” X 84” X 96” HIGH EQUIPPED WITH: AIR DROP END CENTRAL LUBRICATION UPDATED ELECTRIC PANEL WITH ELECTRIC MOTOR BRAKE CONTROLLER ROLLING REMOTE OPERATOR CONTROL STATION SAFETY CUTOFF PUSH WIRE AROUND ROLLS GEAR GUARDING BENDING ROLL POSITION GAUGE THE ROLLS LOOK “LIKE NEW” WITH NO MARKS . THE GEARS ARE EXCELLENT. UPDATED ELECTRIC CONTROLS ON A ROLLING PEDISTAL OPERATORS STATION HAS PUSH BUTTONS TO CONTROL THE PINCH ROLL UP & DOWN, AS WELL AS THE ROLL PITCH USING ADJUSTMENT MOTORS LOCATED AT EACH END OF THE ROLL. ALSO, UP & DOWN MOVEMENT OF THE BENDING ROLL, ROLL TRAVEL & EMERGENCY STOP CONTROLS. THE BENDING ROLL ALSO HAS A SPLIT CLUTCH THAT PERMITS INDEPENDENT ADJUSTMENT OF THE ROLL END. THIS CLUTCH IS MANUALLY ENGAGED OR DISENGAGED AS NEEDED The machine requires a small pit at the end of the roll for the drop end air cylinder. 30 DAY RETURN PRIVILEGE
